Automatic CHM-T560P4 8000cph SMT Assembly Line Manual Nozzle Change
High configuration Advanced SMT Batch Production:
English Version support 110v / 220v
Reflow oven T961/CHM-T560P4/Stencil Screen3040
1.CHM-T3040 stencil printer
| Work table size | 300mm*400mm |
| Max Printable size | 300mm*400mm |
| Max net frame size | 370mm*470mm |
| Printer way | manual |
| Thickness of the substrates | 0-80mm |
| Work table horizontal adjustable volume | 10mm |
| Printing platform height | 190mm |
| Repeated accuracy | ±0.01mm |
| Positioning mode | Border positioning or benchmark hole positioning |
| Dimension | 540mm*380mm*390 mm |
| Packing size | 660mm*550mm*280mm |
| Weight | NW.17Kg GW.23Kg |
2.CHM-T560P4
| CHM-T560P4 Specifications |
| Dimensions | 1180mm(L)×870mm(W)×640mm(H) |
| Weight | 140kg |
| Power Supply | AC220V (50Hz, single phase) /AC110V (60Hz, single phase); 400W |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 4 |
| Mounting Speed | 8000cph(optimal without vision detection); 5500cph (optimal with vision detection) |
| Control Accuracy | 0.015mm |
| Component Type | 0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 10mm(L)×10mm(W)～400mm(L)×290mm(W) |
| PCB Conveying | Manual operation |
| Nozzle Change | Manual operation |
| Control System | Built-in computer (embedded Linux operating system), 7-inch touch screen |
| Drive System | X&Y-axis driven by stepping motors in the way of closed-loop control; Z-axis capable of reset detection;all motors adopting flexible S-curve acceleration and deceleration |
| Transmission System | Synchronous belt + linear guide |
| Feeding System | 60 Yamaha 8mm standard pneumatic feeder stacks (also suitable for Yamaha electric feeder, IC tray, and stick feeder), 11 preset general IC stacks, worksurface custom IC trays supported |
| Vision System | Up-looking camara for component automatic calibration (component size applicable: 22mm×22mm); down-looking camera for PCB calibration via Mark Point and component positioning |
3.T961 Parameters
| Model | T-961 |
| Heating Zone | Up 3/Down 3 |
| Heating Length | 730mm |
| PCB Max Width | 230mm |
| Heating Mode | Infrared &hot air |
| Cooling Zone | 1 |
| Direction | Left->Right |
| Transmission | Net+chain |
| Speed | 0~290mm/min |
| Power | 220V 50/60Hz |
| Peak Power | 3.5KW |
| Average Power | 1.9KW |
| Heating up time | About 7 mins |
| Temp Control | PID |
| Temp Control Accuracy | 1℃ |
| PCB Temp Accuracy | 2℃ |
| Max solder Temp | 300℃ |
| L*W*H(mm) | 1000*466*445 |
| Net Weight | 70KG |
| Packing Weight | 90KG |

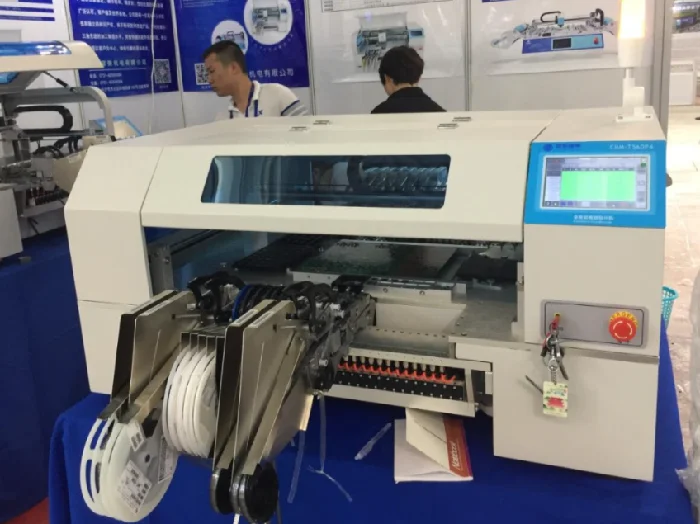

The Real Machine Pictures:
Machine is completed, ready for work, each machine will be 100% tested well, QC passed.
Please purchase it with confidence.
Quality guarantee, quality is better than other brand machines.
Packing List:
CHM-T560P4 pick and place machine complete set ---- 1
Stencill printer 3040 best quality ---- 1
Hot air reflow oven T961 (220v) ---1
Notes
1.Don’t take the machine in the Sun or the highlight directly, or which will reduce the machine precision and even broke the machine.
2.Please kindly contact us if any other questions.
Our Service
This SMT machine will be 100% tested well before ship out.
Tools and manuals are complete included in the package.
Support as well as a long term factory price supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service.
If you want to get more information ,Please don't hesitate to contact me,we will response you at first time.
